Spinal System

Small size
“Wedge” shape to facilitate insertion into the subcutaneous pocket
The large surface of the septum facilitates localization during skin palpation and reduces the risk of close punctures
Excellent stability of the needle due to the high compression of the septum allowed by the Titanium chamber
Titanium guarantees maximum reliability and mechanical stability

Caratteristiche

Chamber
Material	Titanio
Shape and Dimension:	Wedge – base 27.5 mm x 19 mm
Height:	10.5 mm
Weight:	10.5 g
Interior Volume:	0.53 ml

Septum
Material	Silicone
Diameter available for stings:	12.8 mm
Maximum number of stings:	2000 with Huber’s needle of 22GA
	1000 with huber’s needle of 129GA

A 50 micron filter inside the chamber prevents clogging of the system due to small particles

Code	Catheter	Chamber	Ø intmm	Ø ext mm	Ø ext GA	Lenght mm	Volume ml
201.17.10.61	ETI		Open toe PU	0.5	1.0	19	900	0.18
201.17.10.71	ETI		Closed toe PU and side holes	0.5	1.0	19	900	0.18

Kit Contents

Chamber

Catheter

Connector

Huber’s needle 22GA x 25.4 mm

Needle to tip Tronca

Tuohy’s needle 17GA x 80 mm

Tunneller in stainless stell

Arterial System

Small size
“Wedge” shape to falicitate insertion into the subcutaneous pocket
The large surface of the septum facilitates localization during skin palpation and reduces the risk of close punctures
Excellent stability of the needle due to the high compression of the septum allowed by the Titanium chamber
Titanium guarantess maximum realibility and nechanical stability

Features

Chamber
Material	Titanio
Shape and size:	Wedge – base 27.5 mm x 19 mm
Height:	10.5 mm
Weight:	10.5 g
Interior volume:	0.53 ml

Septum
Material	Silicone
Available dimater for punctures	12.8 mm
Maximum number of stings:	2000 with Huber’s needle of 22GA
	1000 with Huber’s needle of 129GA

Code	Chamber	Catheter mm	Ø intmm	Ø ext mm	Ø ext GA	Lenght mm	Volume ml
201.17.10.51	ETI	Silicone	1.0	2.1	6.5	780	0.61

Kit contents

Chamber

Catheter

Connector

Huber’s needle 22GA x 25.4 mm

Luer’s connector

Dimensioni ridotte
Forma a “cuneo” per favorire l’inserimento nella tasca sottocutanea
L’ampia superfice del setto facilita la localizzazione durante la palpazione della pelle e riduce il rischio di punture ravvicinate
Ottima stabilità dell’ago per l’elevata compressione del setto consentita dalla camera di Titanio
Il Titanio garantisce la massima affidabilità meccanica e la massima stabilità

Caratteristiche

Camera
Materiale	Titanio
Forma e dimensioni:	Cuneo – base 27.5 mm x 19 mm
Altezza:	10.5 mm
Peso:	10.5 g
Volume Interno:	0.53 ml

Setto
Materiale	Silicone
Diametro disponibile per le punture:	12.8 mm
Massimo numero di punture:	2000 con ago di Huber da 22GA
	1000 con ago di Huber da 129GA

Catetere con punta arrotondata, marcatura con punto ogni centimetro e numero ogni 5 centimetri.

Codice	Descrizione prodotto miniMAX	Altezza mm	Peso g	Materiale	ID mm	OD mm	Dimensione Fr	Lunghezza mm	Introduttore Dimensione Fr	Portata mL/min 22GA	Portata mL/min 19GA
201.17.12.21	All-in-One	10.5	10.5	silicone	1.00	2.10	6,5	780	6.5	7	13
201.17.12.31	All-in-One	10.5	10.5	silicone	1.50	2.70	8	780	9	10	18
201.17.12.41	All-in-One	10.5	10.5	PUR	1.10	1.70	5	780	5	8	13
201.17.10.21	Standard	10.5	10.5	silicone	1.00	2.10	6,5	780	NA	7	13
201.17.10.31	Standard	10.5	10.5	silicone	1.50	2.70	8	780	NA	10	13
201.17.10.41	Standard	10.5	10.5	PUR	1.10	1.70	5	780	NA	8	13

All-in-One	Contenuto del Kit
	Camera
	Catetere
	Connettore
	Ago di Huber 22GA x 25.4 mm
	Connettore Luer
	Introduttore-dilatatore peel-away
	Ago introduttore da 18GA
	Guida a “J” da 0.89 mm
	Tunnellizzatore in acciaio inossidabile

Standard	Contenuto del Kit
	Camera
	Catetere
	Connettore
	Ago di Huber 22GA x 25.4 mm
	Connettore Luer

Set di introduzione Venoso

Codice		Codice Colore
201.51.10.21	Set d’introduzione 6.5 FR	10
201.51.10.31	Set d’introduzione 9 FR	10
201.51.10.41	Set d’introduzione 5 FR	10

Introduttore-dilatatore peel-away
Ago introduttore da 18 GA
Guida a “J” da 0.89 mm
Tunnellizzazione in acciaio inossidabile

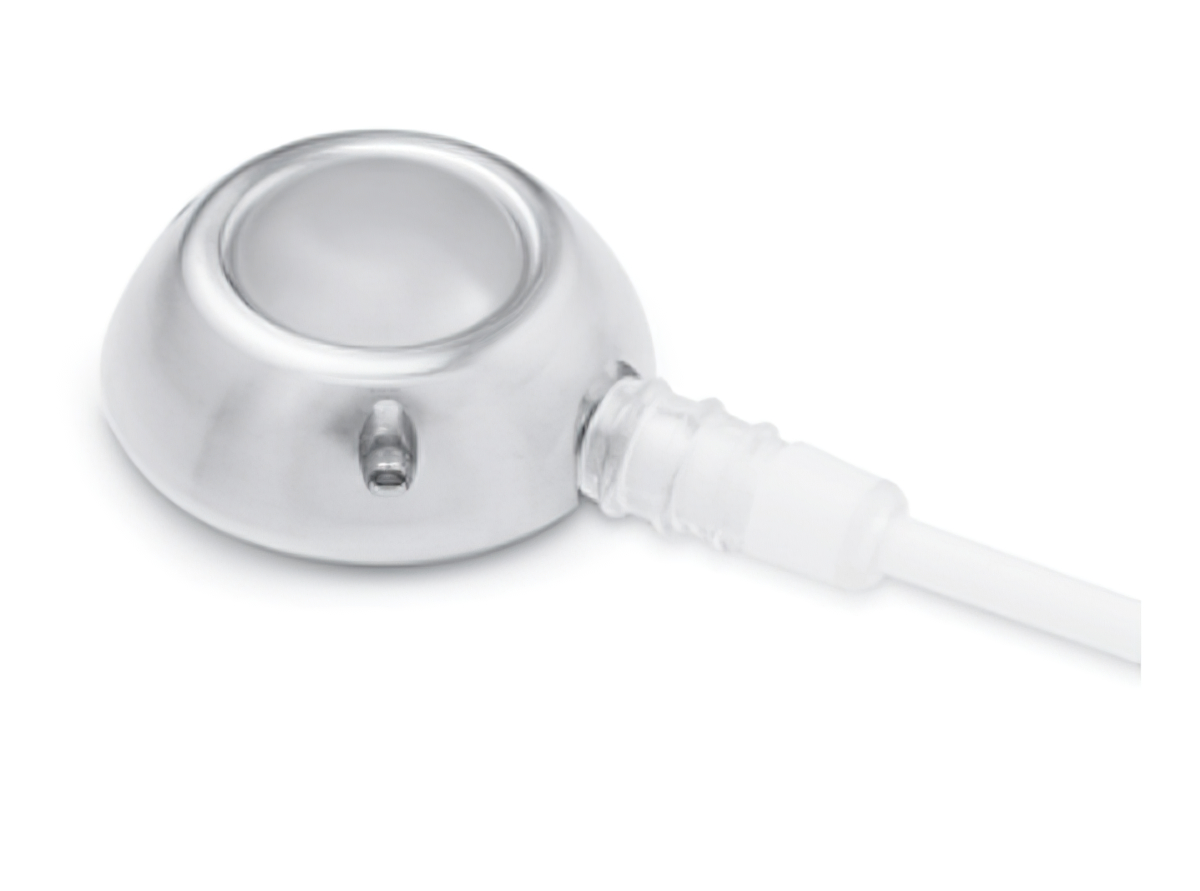

Chamber designed to be used at high flows for injections of contrast media
“Low-Profile” chamber to facilitate insertion into the subcutaneous pocket and increase patient comfort
Emerging domed septum for immediate and safe subcutaneous retrieval
The large surface area of the septum reduces the risk of close punctures
Transparent and radiopaque elastomeric connector: fast, safe and reversible connection of the catheter

Caratteristiche

Chamber
Material	Titanio
Shape and size:	Circular – diam. base. 25 mm
Height:	10 mm
Wheight:	10.3 g
Internal Volume:	0.6 ml

Catheter with rounded tip, dot marking every centimeter and number every 5 centimeters.

Septum
Material	Silicone
Diameter available for punctures:	12.8 mm
Maximum number of stings:	2000 with Huber’s needle from 22GA
	1000 with Huber’s needle from 19GA

Max Flow Rate: 5ml / s with Max pressure 300PSI, Max Viscosity 12cP

Code	Item description POWER LPT	Height mm	Weight g	Material	ID mm	OD mm	Size Fr	Lenght mm	Introductor Size Fr	Flow mL/min 22GA	Flow mL/min 19GA
201.26.12.30	All-in-One	10	10.3	silicone	1.30	2.70	8	600	9	7	21
201.26.12.20	All-in-One	10	10.3	PUR	1.35	2.00	6	600	6.5	8	22
201.26.12.33	All-in-One	10	10.3	PUR	1.60	2.70	8	600	9	8	24
201.26.10.30	Standard	10	10.3	silicone	1.30	2.70	8	600	NA	7	21
201.26.10.20	Standard	10	10.3	PUR	1.35	2.00	6	600	NA	8	22
201.26.10.33	Standard	10	10.3	PUR	1.60	2.70	8	600	NA	8	24

All-in-One	Kit content
	Chamber	Needle truncated point
	Catheter	Syringe 10 ml
	Coonector
	Huber’s needle 22GA x 25.4 mm	Huber’s needle 90° – 20GA x1″ with extension (in dedicated packaging)
	Luer’s connector
	Introducer-dilator peel-away
	ntroducer needle from 18GA
	Guide at “J” da 0.89 mm
	Tunneller in stainless steel

Standard	Kit of content
	Chamber
	Catheter
	Connector
	Huber’s needle 22GA x 25.4 mm
	Luer’s connector

Venous introduction set

Code		Colour Code
201.51.10.21	Introduction Set 6.5 FR	10
201.51.10.31	Introduction Set 9 FR	10

Introducer-dilator peel-away
Introducer needle from 18 GA
Guide at “J” da 0.89 mm
Tunneling in stainless steel

High profile
Chamber designed to be used at high flows for injections of contrast media
The large surface of the septum facilitates localization during skin palpation and reduces the risk of close punctures
Transparent and radiopaque elastomeric connector: fast, safe and reversible connection of the catheter

Caratteristiche

Chamber
Material	Titanio
Shape and size:	Wedge- diam. base. 22 mm x 26 mm
Height:	13 mm
Wheight:	12 g
Internal Volume:	0.82 ml

Catheter with rounded tip, dot marking every centimeter and number every 5 centimeters.

Septum
Material	Silicone
Diameter available for punctures:	13 mm
Maximum number of stings:	2000 with Huber’s needle from 22GA
	1000 with Huber’s needle from 19GA

Max Flow Rate: 5ml / s with Max pressure 300PSI, Max Viscosity 12cP

Code	Item description POWER TI	Height mm	Weight g	Material	ID mm	OD mm	Size Fr	Lenght mm	Introducer Dimension Fr	Flow mL/min 22GA	Flow mL/min 19GA
201.23.12.30	All-in-One	13	12	silicone	1.30	2.70	8	600	9	7	21
201.23.12.20	All-in-One	13	12	PUR	1.35	2.00	6	600	6.5	8	22
201.23.12.33	All-in-One	13	12	PUR	1.60	2.70	8	600	9	8	24
201.23.10.30	Standard	13	12	silicone	1.30	2.70	8	600	NA	7	21
201.23.10.20	Standard	13	12	PUR	1.35	2.00	6	600	NA	8	22
201.23.10.33	Standard	13	12	PUR	1.60	2.70	8	600	NA	8	24

All-in-One	Kit Contents
	Chamber
	Catheter
	Connector
	Huber’s needle 22GA x 25.4 mm
	Luer Connector
	Introducer-dilator peel-away
	Introducer needle from da 18GA
	Guide at “J” from 0.89 mm
	Tunneler in stainless steel

Standard	Kit Contents
	Chamber
	Catheter
	Connector
	Huber’s needle 22GA x 25.4 mm
	Luer

Venous introduction set

Code		Colour Code
201.51.10.21	Introduction Set 6.5 FR	10
201.51.10.31	Introduction Set 9 FR	10

Introducer-dilator peel-away
Introductor needle da 18 GA
Guide at “J” from 0.89 mm
Tunneling in stainless steel

Small size
Circular shape for maximum chamber stability (low risk of overturning)
The large surface of the septum facilitates localization when palpating the skin and reduces the risk of close punctures
Excellent stability of the needle due to the high compression of the septum allowed by the Titanium chamber
Titanium guarantees maximum reliability and mechanical stability

Caratteristiche

Chamber
Material	Titanio
Shape and size	circular – diam. base. 26 mm
Height:	10.2 mm
Weight:	8.5 g
Internal volume :	0.53 ml

Catetere con punta arrotondata, marcatura con punto ogni centimetro e numero ogni 5 centimetri.

Septum
Material	Silicone
Diameter available for punctures:	12.8 mm
Maximum number of stings:	2000 with Huber needle from 22GA
	1000 with Huber needle from 19GA

Code	Item description POWER TI	Height mm	Weight g	Material	ID mm	OD mm	Dimension Fr	Lenght mm	Introducer Dimension Fr	Flow mL/min 22GA	Flow mL/min 19GA
201.15.12.21	All-in-One	10.2	8.5	silicone	1.00	2.10	6,5	780	6.5	7	12
201.15.12.31	All-in-One	10.2	8.5	silicone	1.50	2.70	8	780	9	10	18
201.15.12.41	All-in-One	10.2	8.5	PUR	1.10	1.70	5	780	5	8	13
201.15.10.21	Standard	10.2	8.5	silicone	1.00	2.10	6,5	780	NA	7	12
201.15.10.31	Standard	10.2	8.5	silicone	1.50	2.70	8	780	NA	10	18
201.15.10.41	Standard	10.2	8.5	PUR	1.10	1.70	6,5	780	NA	8	13

All-in-One	Kit Contents
	Chamber
	Catheter
	Connector
	Huber needle from 22GA x 25.4 mm
	Luer Connector
	Introducer-dilator peel-away
	Introducer needle from 18GA
	Guide at “J” from 0.89 mm
	Tunneler in stainless steel

Standard	Kit Contents
	Chamber
	Catheter
	Connector
	Huber needle from 22GA x 25.4 mm
	Luer Coonector

Venous introduction set

Code		Code Colour
201.51.10.21	Introduction Set 6.5 FR	10
201.51.10.31	Introduction Set 9 FR	10
201.51.10.41	Introduction Set 5 FR	10

Dilatator-Introducer peel-away
Introducer needle from 18 GA
Guide at “J” da 0.89 mm
Tunneling in stainless steel

Extremely small size
“Wedge” shape to facilitate insertion into the subcutaneous pocket
Large surface of the self-sealing septum (in relation to the size of the chamber)
Indicated for patients with “cosmetic” needs or pediatric patients
Excellent needle stability due to the high compression of the septum allowed by the Titanium chamber
Titanium guarantees maximum mechanical reliability and maximum stability

Features

Chamber
Material	Titanium
Shape and Size:	Wedge – base 21 mm x 16 mm
Height:	8,6 mm
Weight:	6 g
Volume Interior:	0,2 ml

Septum
Material	Silicone
Diameter available for punctures:	9 mm
Maximum number of stings:	1500 with needle of Huber da 22GA

Catheter with rounded tip, dot marking every centimeter and number every 5 centimeters.

Code	Description item miniMAX	Height mm	Wheight g	Material	ID mm	OD mm	Size Fr	Lenght mm	Introducer Dimension Fr	Flow mL/min 22GA
201.16.12.21	All-in-One	8.6	6	silicone	1.00	2.10	6,5	780	6.5	7
201.16.12.41	All-in-One	8.6	6	PUR	1.10	1.70	5	780	5	8
201.16.12.55	All-in-One	8.6	6	PUR	1.10	1.70	5	780	5	8
201.16.10.21	Standard	10.2	8.5	silicone	1.00	2.10	6,5	780	NA	7
201.16.10.41	Standard	10.2	8.5	PUR	1.10	1.70	5	780	NA	8

All-in-One	Kit contents
	Camera
	Catheter
	Connector
	Huber needle 22GA x 25.4 mm
	Luer Connector
	Introducer-dilator
	Introcuder needle of 18GA
	Guide at “J” from 0.89 mm
	Tunneler in stainless steel

Standard	Kit Content
	Camera
	Catheter
	Connector
	Huber needle 22GA x 25.4 mm
	Luer connector

venous introduction set

Code		Colour Code
201.51.10.21	Set introduction 6.5 FR	10
201.51.10.41	Set introduction 5 FR	10

Introducer-dilator peel-away
Introducer needle from 18 GA
Guide at “J” from 0.89 mm
Tunneling in stainless steel

PICC LINES

Indications for use

HEALTHPICC® identifies a range of catheters indicated for access to the venous system with perifieric implantation through a vein in the arm. They are indicated for short and long-term therapies, allowing the venous administration of fluids, medicines, nutritional therapies and blood sampling.

All HEALTHPICC® catheters are suitable for high flow injection of contrast media (“Power injection”).

Features

1 Cateteri Power Injectable
All catheters HEALTHPICC® are made of polyurethane and therefore suitable for high pressure (max flow as per the table below)

2 Content of the Kit

> Catheter HEALTHPICC® with marking every centimeter.
> Spindle
> T- connector locks spindle
> Ago Ecogenico da 21GA
> Soft straight tip Nitionol guide (Floppy)
> Dilator / Introducer
> Connector MicroCLAVE® neutral
> Fixing adhesive sutureless Grip-Lok®
> Scalpel with safety device
> Paper meter
> Instructions for Use
> Patient Card

3 Compatible with the RCG technique for correct positioning of the catheter tip

4 Reverse Tapering
For a simple and safe implant procedure, reducing the risk of bleeding.

References

Code	Lume	Diameter catheter (FR)	Material Catheter	Effective lenght (mm)	Flow rate to fall (ml/s)	Maximum capacity^b (ml/s)	Inverse taper	Marking of depth
201.60.10.13	Single	3	Polyurethane	450	8	2	Yes	Yes
201.60.10.14	Single	4	Polyurethane	550	22	5	Yes	Yes
201.60.10.15	Single	5	Polyurethane	550	39	7	Yes	Yes
201.60.10.24	Double	4	Polyurethane	450	4	2	Yes	Yes
201.60.10.25	Double	5	Polyurethane	500	10	5	Yes	Yes
201.60.10.36	Triple	6	Polyurethane	550	13	5	Yes	Yes

(a) Infusion by gravity from a height of 1 meter.
(b) Maximum flow with pump pressure limit of 300 psi and medium viscosity of 12cP.
(c) For the 6FR catheter, only one lumen is usable for Power flows.

Microintroduction kit

Code	Description	Introducer Needle	Dilator/Introducer	Guide wire
201.60.51.03	Introduction Set 3FR short	21GA x 40 mm	4FR x 50 mm	0.45 x 400 mm
201.60.51.04	Introduction Set 4FR short	21GA x 40 mm	4FR x 50 mm	0.45 x 400 mm
201.60.51.14	Introduction Set 4FR	21GA x 70 mm	4.5FR x 70 mm	0.45 x 400 mm
201.60.51.15	Introduction Set 5FR	21GA x 70 mm	5.5FR x 70 mm	0.45 x 400 mm
201.60.51.06	Introduction Set 6FR	21GA x 70 mm	6FR x 70 mm	0.45 x 400 mm

Tecnologia Quick Flashback (Adva) I.V.

Catetere con Tecnologia Quick Flashback Adva dell’ago

flashback rapido che conferma istantaneamente il successo della venipuntura
la tecnologia dell’ago migliora il successo della puntura al primo tentativo
la conferma istantanea del flusso sanguigno attraversoil corpo del catetere aumenta la probabilità di accedere con successo alla vena

Safety Closed I.V. Catheter System

The risk of crossing peripheral catheter connections is often a cause for concern. The new generation of closed system venous catheters has improved both the treatment of patients and the safety of healthcare professionals.

Advantages: safety and comfort

Integrated system minimizes the risk of contamination and accidental disconnection
Provides access into the peripheral vascular system for administration of fluids and drugs
Closed IV Catheter system supports two infusions at same time
Provides safety to the patients from Hospital Acquired Infections and healthcare professionals from Needle Stick Injuries
Advanced Polyurethane catheter material ensures better bio-compatibility & longer indwelling time
Also available with two Needle Free Connectors & Straight Port

Advantages of Micro Clave Clear in Nouvo Safety Set

Clear housing allows for visualization of the internal fluid path
Effectively clears blood and blood residual with low flush volumes
Minimal blood reflux in the catheter tip upon connection or disconnection with luer

Micro Clave** Clear Connector Reduces The Risk Of Catheter Related Bloodstream Infections (CRBSI)

User Friendly, Self Activating Safety Mechanism Prevents Needle Stick Injuries.

Flexible Perforated Soft Wings

Quick Flashback Needle Technology ensures successful venepuncture

Compatibile con iniettori Power fino a 325-330 PSI Adatto anche per infusione sottocutanea

Size	Catheter O.D.mm	Catheter Length mm	Flow Rate (ml/mnt)
18G Green	1.3	45	90
18G Green	1.3	32	94
20G Pink	1.1	32	56
22G Blue	0.9	25	36
24G Yellow	0.7	25	18

**Micro Clave Connector is the registered trademark of ICU Med,USA

Handfiller

is a manual device able to host a 50ml-Luer lock-syringe connected to tubing system used to “pump” the drug from the container to fill the elastomeric pump acting on the plastic level arm.
HANDFILLER IS a TOOL NOT A MEDICAL DEVICE ACCORDING TO MEDICAL DEVICE DIRECTIVE 93/42
Handfiller could be used to facilitate the operations of filling elastomeric pumps with liquid drugs. It is common practice for the nurses to charge the liquid drug into a 50ml or 60ml syringe and to fill the elastomeric pump
directly connecting the syringe to the pump, usually under aspirating and protecting box. Handfiller reduces the nurse’s effort and discomfort during this operation, thanks to the possibility of accommodating the syringe in a
proper position and manually acting on a lever, which fills and flushes the syringe once connected to a 2-way tubing system. The tubing system should have one termination connected to the syringe and the other two, after the selector, one to the drug container and the other to the elastomeric pump.

Ref.

203.09.10.30

MATERIALS
White	Compound Body, rod holder, syringe holder, levers and supports
Stainless Steel	Screws, pins, syringe block
PVC	removable base suction cups, base rubbers
PACKAGING	Product unit: Labelled Cardboard box
CLEANING METHOD	Resistant to common disinfectants, acids and basic solutions
STERILISATION	Autoclave permitted (remove PVC parts suctions cups and base rubbers)

Quantity per PO	Up to 100 units	101 to 200 units 20%	201 – 500 units 25%	> 501 units 30%
Price	€ 270 each.	€ 216 each. Discounted price on the range	€ 202.5 each. Discounted price on the range	€ 180 each. Discounted price on the range

Handfiller

200 Ml

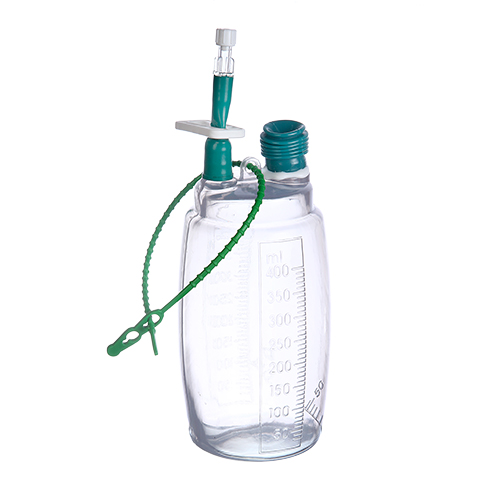

400 Ml

600 Ml

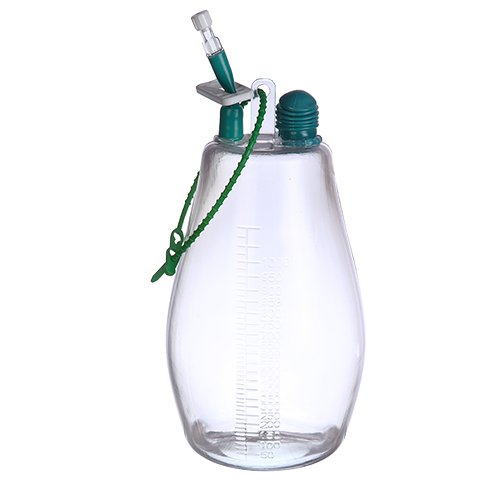

1000 Ml

Trocar & Redon Drain (Optional)

Extension Tube with Clamp

Ultravak Set

High Pressure Vacuum Bottle with Extension Tube

90500-90518

Rigid suction containers are predominantly connected to wound drainage containers and temporarily, applied to evacuate wound exudates and for contraction of wound surfaces in the post-operative phase
Clear transparent bottles with bold marking facilitates proper and easy reading
Graduated bottle chamber available in 200 ml, 400ml & 600ml
Kink resistant 105 cm PVC tubing
Suitable for high pressure vacuum drainage under negative pressure for post-operative phase
Accessory: Extension tube with clamp, vacuum indicator & bottle unit with connector
Also available with Trocar & Redon Drain

Model	Capacity
X Large	1000 ml
Large	600 ml
Medium	400 ml
Small	200 ml

Info Line

Email

Senza categoria

Handfiller

Plan 1 Health S.r.l.
