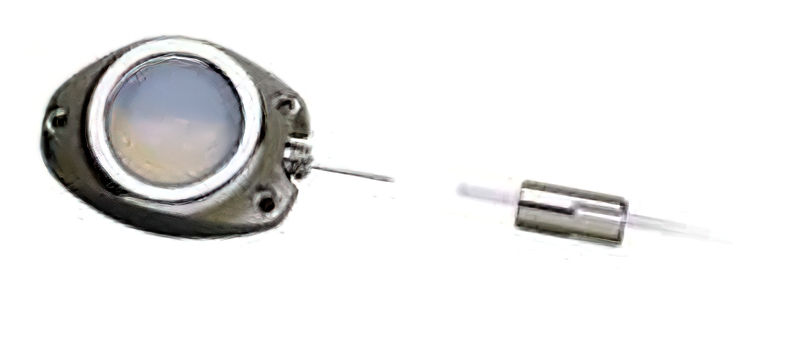

Spinal System

  • Small size
  • “Wedge” shape to facilitate insertion into the subcutaneous pocket
  • The large surface of the septum facilitates localization during skin palpation and reduces the risk of close punctures
  • Excellent stability of the needle due to the high compression of the septum allowed by the Titanium chamber
  • Titanium guarantees maximum reliability and mechanical stability

Caratteristiche

Chamber
Material Titanio
Shape and Dimension: Wedge – base 27.5 mm x 19 mm
Height: 10.5 mm
Weight: 10.5 g
Interior Volume: 0.53 ml
Septum
Material Silicone
Diameter available for stings: 12.8 mm
Maximum number of stings: 2000 with Huber’s needle of 22GA
1000 with huber’s needle of 129GA

A 50 micron filter inside the chamber prevents clogging of the system due to small particles

Code
Catheter
 Chamber
Ø int
mm
Ø ext
mm
Ø ext
GA
Lenght
mm
Volume
ml
201.17.10.61
ETI
Open toe PU
0.5
1.0
19
900
0.18
201.17.10.71
ETI
Closed toe PU
and side holes
0.5
1.0
19
900
0.18
Kit Contents
Chamber
Catheter
Connector
Huber’s needle  22GA x 25.4 mm
Needle to tip Tronca
Tuohy’s needle 17GA x 80 mm
Tunneller in stainless stell

Arterial System

  • Small size
  • “Wedge” shape to falicitate insertion into the subcutaneous pocket
  • The large surface of the septum facilitates localization during skin palpation and reduces the risk of close punctures
  • Excellent stability of the needle due to the high compression of the septum allowed by the Titanium chamber
  • Titanium guarantess maximum realibility and nechanical stability

Features

Chamber
Material Titanio
Shape and size: Wedge – base 27.5 mm x 19 mm
Height: 10.5 mm
Weight: 10.5 g
Interior volume: 0.53 ml
Septum
Material Silicone
Available dimater for punctures
12.8 mm
Maximum number of stings: 2000 with Huber’s needle of 22GA
1000 with Huber’s needle of 129GA
Code
Chamber
Catheter
mm
Ø int
mm
Ø ext
mm
Ø ext
GA
Lenght
mm
Volume
ml
201.17.10.51
ETI
Silicone
1.0
2.1
6.5
780
0.61
Kit contents
Chamber
Catheter
Connector
Huber’s needle  22GA x 25.4 mm
Luer’s connector
