PICC LINES


Indications for use

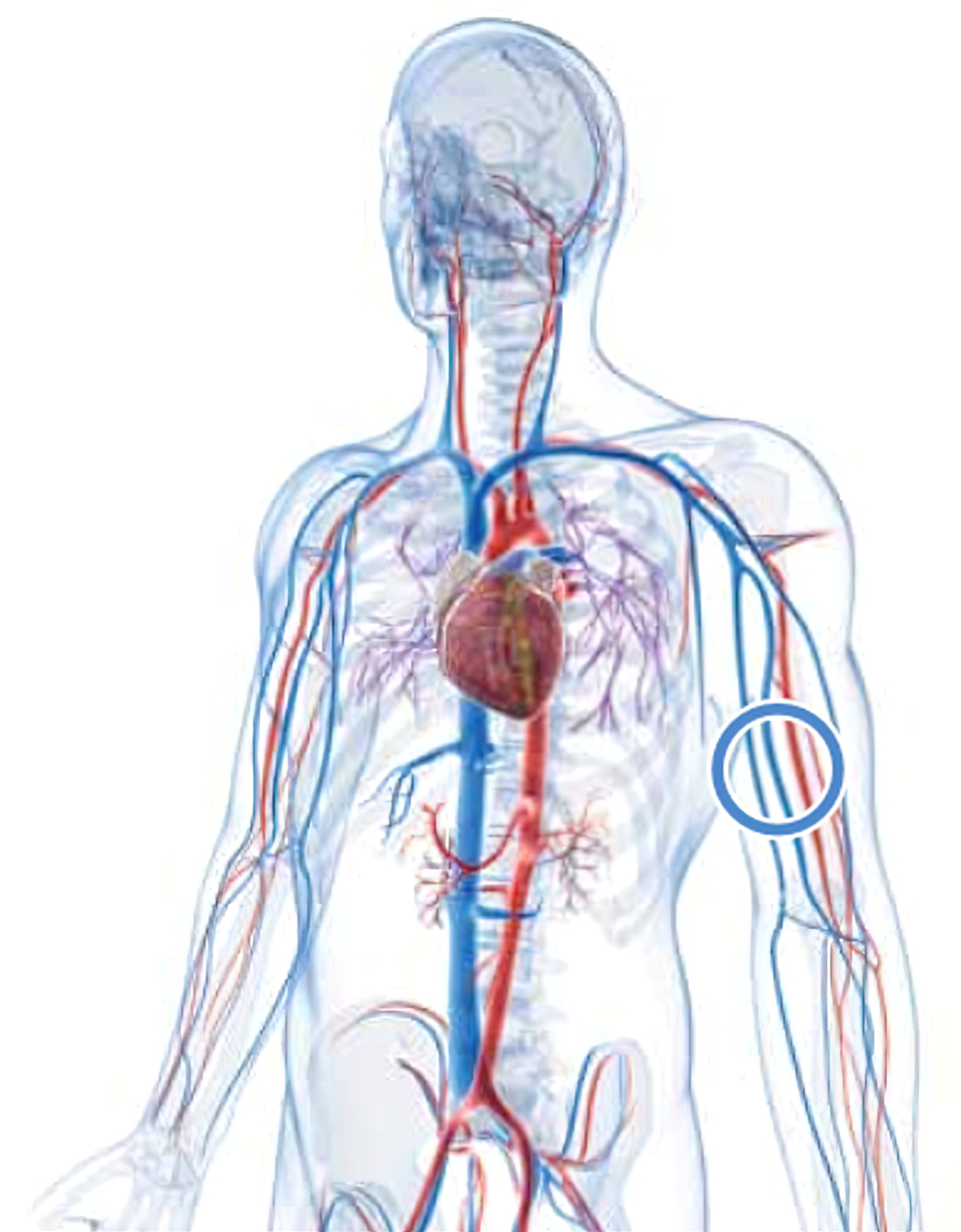

HEALTHPICC® identifies a range of catheters indicated for access to the venous system with perifieric implantation through a vein in the arm. They are indicated for short and long-term therapies, allowing the venous administration of fluids, medicines, nutritional therapies and blood sampling.

All HEALTHPICC® catheters are suitable for high flow injection of contrast media (“Power injection”).

Features

1 Cateteri Power Injectable
All catheters  HEALTHPICC® are made of polyurethane and therefore suitable for high pressure (max flow as per the table below)

2 Content of the Kit

  • > Catheter HEALTHPICC® with marking every centimeter.
  • > Spindle
  • > T- connector locks spindle
  • > Ago Ecogenico da 21GA
  • > Soft straight tip Nitionol guide (Floppy)
  • > Dilator / Introducer
  • > Connector MicroCLAVE® neutral
  • > Fixing adhesive sutureless Grip-Lok®
  • > Scalpel with safety device
  • > Paper meter
  • > Instructions for Use
  • > Patient Card

3 Compatible with the RCG technique for correct positioning of the catheter tip

4 Reverse Tapering
For a simple and safe implant procedure, reducing the risk of bleeding.


References

Code
Lume
Diameter
catheter
(FR)
Material
Catheter
Effective
lenght
(mm)
Flow rate
to fall
(ml/s)
Maximum
capacityb
(ml/s)
Inverse
taper
Marking of
depth
201.60.10.13
Single
3
Polyurethane
450
8
2
Yes
Yes
201.60.10.14
Single
4
Polyurethane
550
22
5
Yes
Yes
201.60.10.15
Single
5
Polyurethane
550
39
7
Yes
Yes
201.60.10.24
Double
4
Polyurethane
450
4
2
Yes
Yes
201.60.10.25
Double
5
Polyurethane
500
10
5
Yes
Yes
201.60.10.36
Triple
6
Polyurethane
550
13
5
Yes
Yes

(a) Infusion by gravity from a height of 1 meter.
(b) Maximum flow with pump pressure limit of 300 psi and medium viscosity of 12cP.
(c) For the 6FR catheter, only one lumen is usable for Power flows.

Microintroduction kit

Code
Description
Introducer Needle
Dilator/Introducer
Guide wire
201.60.51.03
Introduction Set 3FR short
21GA x 40 mm
4FR x 50 mm
0.45 x 400 mm
201.60.51.04
Introduction Set 4FR short
21GA x 40 mm
4FR x 50 mm
0.45 x 400 mm
201.60.51.14
Introduction Set 4FR
21GA x 70 mm
4.5FR x 70 mm
0.45 x 400 mm
201.60.51.15
Introduction Set 5FR
21GA x 70 mm
5.5FR x 70 mm
0.45 x 400 mm
201.60.51.06
Introduction Set 6FR
21GA x 70 mm
6FR x 70 mm
0.45 x 400 mm
